Professional PCB Manufacturing Solutions
With 20 years of expertise in PCB design, prototyping, and manufacturing, we deliver high-quality, custom-tailored PCBs that meet your specific requirements. We’ve established a flexible production system capable of handling samples, small-to-medium batches, and multi-lot productions, with core strengths in online quoting, rapid production, and quick delivery. As a distinctive service provider for electronic R&D and hardware innovation, we specialize in multi-layer PCBs of varying complexity, impedance-controlled PCBs, and HDI boards. Additionally, we offer a range of free, high-quality solutions to ensure our clients always receive optimal products.
Advanced PCB Manufacturing
State-of-the-art facilities for high-precision PCB production

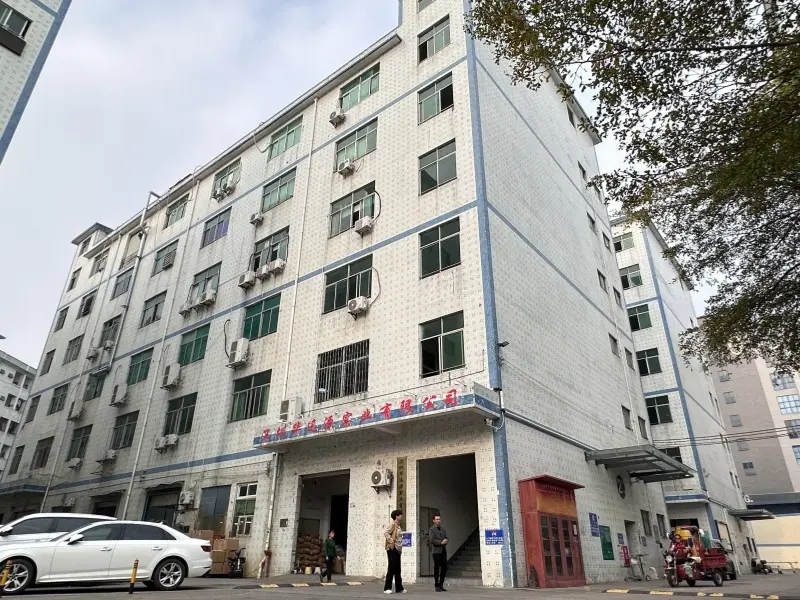

About PCBASAIL
PCBASAIL is a leading Chinese PCB manufacturer specializing in high-quality PCB production, assembly, and design services. With two decades of industry experience, we serve clients worldwide across various industries.
Our Expertise
We specialize in producing high-precision single-sided, double-sided, and multi-layer PCBs with advanced manufacturing capabilities and strict quality control.
PCB Design & Prototyping
Expert design services and rapid prototyping to bring your ideas to life.
High-Volume Production
Efficient production processes to meet large-scale manufacturing needs.
Quality Assurance
Stringent testing and inspection to ensure the highest quality standards.
Our PCB Special Processes
We offer a comprehensive range of PCB manufacturing processes to meet diverse industry requirements.

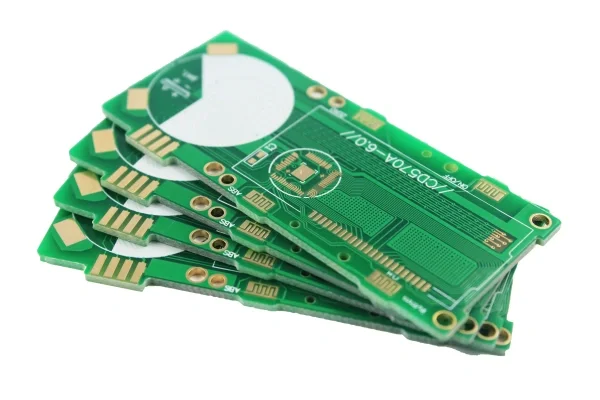

Rigid PCB
High-quality rigid PCBs for a wide range of applications with excellent durability and reliability.
Learn More

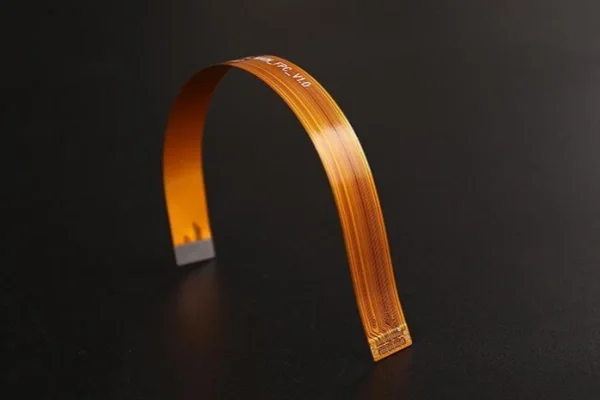

Flex PCB
Flexible printed circuit boards that can be bent, folded, or twisted to fit into compact spaces.
Learn More
Rigid Flex PCB
Combines the benefits of rigid and flexible PCBs, ideal for complex electronic devices with space constraints.
Learn More

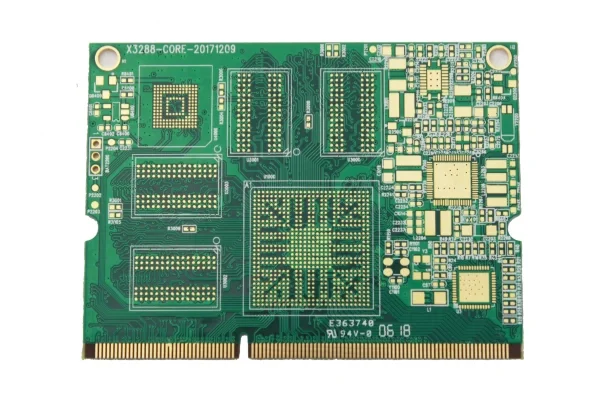

HDI PCB
High-Density Interconnect PCBs with fine lines, microvias, and high component density for advanced applications.
Learn More

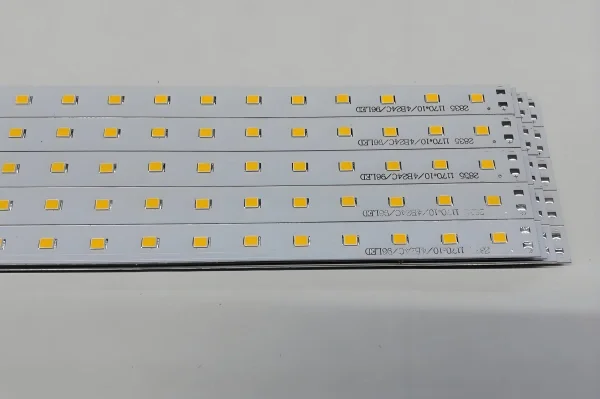

Aluminum PCB
Metal-core PCBs with excellent thermal conductivity for LED lighting, power supplies, and high-power applications.
Learn More

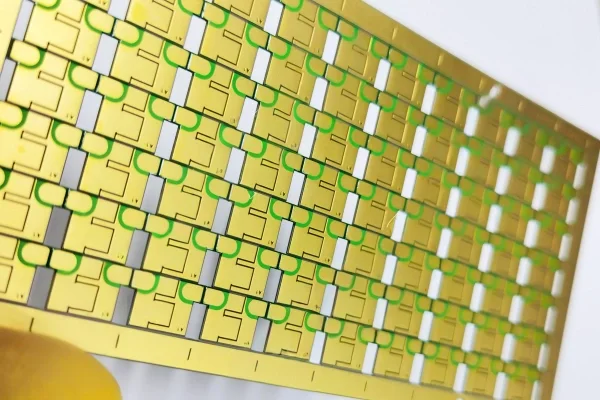

Ceramic PCB
High-performance ceramic PCBs designed for extreme environments, offering superior thermal conductivity and insulation.
Learn MoreOur Manufacturing Capabilities

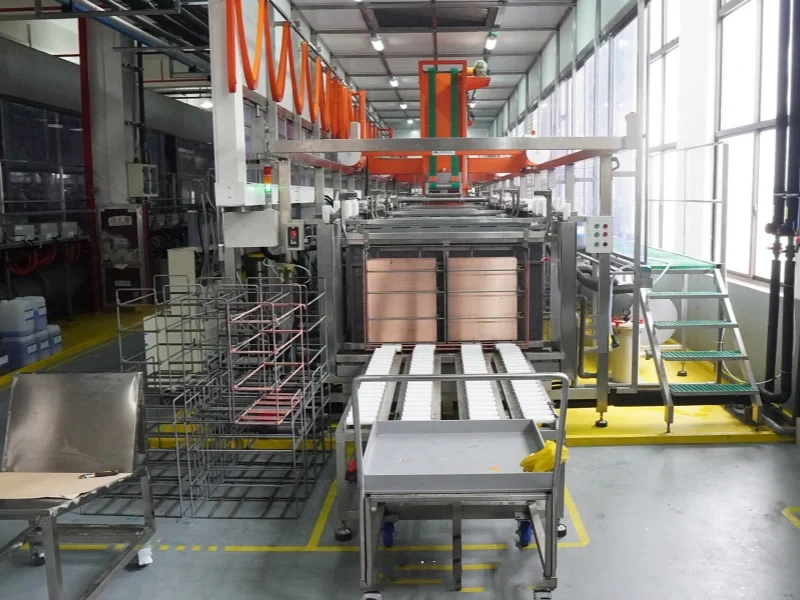

Our state-of-the-art facility is equipped to handle complex PCB manufacturing requirements with precision and efficiency.
Technical Specifications
- Up to 32-layer rigid PCBs
- HDI (3 + n + 3) technology
- Hybrid substrate PCBs
- Thick copper PCBs (up to 10oz)
- High-frequency PCBs (RO4350, Rogers, etc.)
- Aluminum-based and metal core PCBs
- Halogen-free PCBs
Service Features
- 24-hour expedited service available
- Free PCB samples for qualified orders
- Compliance with IPC-Class2 & Class3 standards
- DFM analysis and design support
- Full range of surface finishes
- Comprehensive testing and inspection
Manufacturing Process
Design Review
Our engineering team reviews your PCB design to ensure manufacturability and optimize for production.
Material Selection
We carefully select the appropriate materials based on your specifications and application requirements.
PCB Fabrication
Precision manufacturing using advanced equipment and processes to create your PCB.
Quality Control
Comprehensive testing including electrical testing, AOI, and X-ray inspection to ensure quality.
Assembly (Optional)
Professional PCB assembly services using automated pick-and-place machines and reflow ovens.
Final Inspection & Shipping
Final quality check before packaging and shipping your order to your specified destination.
Industry Applications
Our PCB manufacturing capabilities serve a wide range of industries with specialized requirements.
Ready to Start Your PCB Project?
Get a quote for your next PCB manufacturing project or contact us for technical support and custom solutions.
